ARM 架构计算机

Moxa ARM 架构工业计算机支持无线功能,其无风扇结构,体积小,专为小型自动化应用设计。这款计算机能持久运行,提供 5 年硬件保修和支持长达 10年的Moxa 工业 Linux 操作系统,使之成为远程监控和数据采集应用的理想之选。

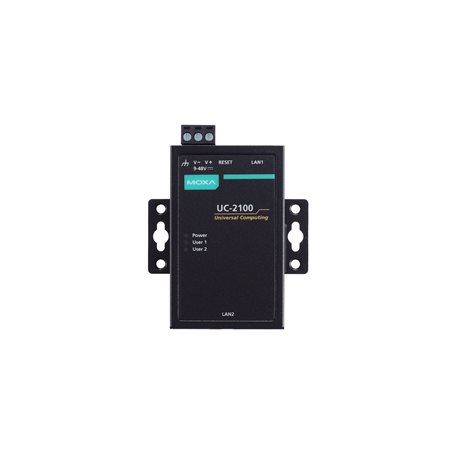

UC-2102-LX
UC-2100 系列

Mini RISC-based embedded computer with 600 MHz processer and 2 LAN ports

Computer
  • CPU

    • Armv7 Cortex-A8 600 MHz
  • DRAM

    • 256 MB DDR3
  • Storage Pre-installed

    • 8 GB eMMC
  • Pre-installed OS

    • Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
  • Supported OS

    • Moxa Industrial Linux (Debian 9)
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
  • Buttons

    • Reset button, DIP switch for serial port configuration
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Baudrate

    • 50 bps to 921.6 kbps
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • ESD Protection

    • 4 kV, for all signals
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
LED Indicators
  • System

    • Power x 1
  • LAN

    • 2 per port (10/100 Mbps)
  • User Programmable

    • User x 2
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • Wall mounting, DIN-rail mounting (with optional kit)
  • Weight

    • 190 g (0.42 lb)
  • Dimensions (with ears)

    • 73 x 80 x 28 mm (2.87 x 3.15 x 1.10 in)
  • Dimensions (without ears)

    • 50 x 80 x 28 mm (1.97 x 3.15 x 1.10 in)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Shock

    • IEC 60068-2-27
  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)
Power Parameters
  • Input Voltage

    • 9 to 48 VDC
  • Input Current

    • 0.084 A @ 9 VDC, 0.45 A @ 48 VDC
  • Power Consumption

    • 4 W
MTBF
  • Time

    • 1,652,339 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Reliability
  • Alert Tools

    • External RTC (real-time clock)
  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Standards and Certifications
  • Safety

    • EN 60950-1, IEC 60950-1, UL 60950-1
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Green Product

    • RoHS, CRoHS, WEEE
Warranty
